MACRO
ZG and ZC.8 zone control systems
|
|
Three comprehensively specified units for control of signal routing and zone selection. ZG units can be daisy-chained and slaved with the ZC.8 to increase the number of output zones. All units are designed for high reliability applications in BS.5839 and BS.7443 systems |
|
|
|

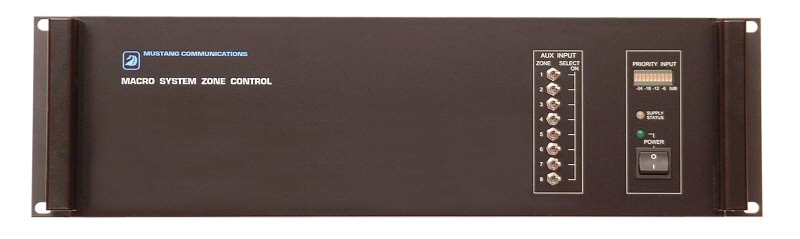

ZC.8 Add-on unit |
| Brief specifications and features | |||
|
|

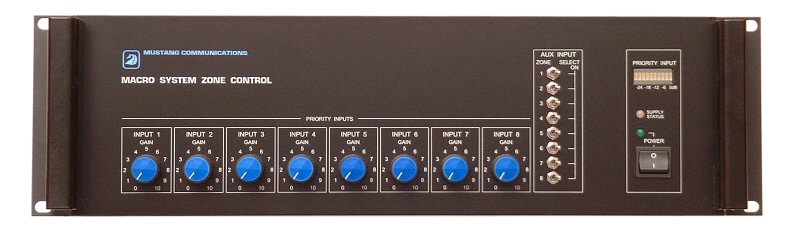

ZG/4 |
ZG/8 |
ZC.8 |
|
Input section |
|||
|
Input module capacity |
Up to 8 - click for details |
- |
|
|
Priority chain |
Ladder or equal access or any combination |
- |
|
|
Control outputs |
DC priority current sink from each priority input module upon access. Current sink upon access of "ANY" module |
- |
|
|
Audio output |
Single 0dB unbalanced - internally routed to output section. Access at mixer facility socket |
- |
|
|
Output Section |
|||
|
Priority audio input |
Single 0dB unbalanced - internally routed from input section. Access at mixer facility socket |
Single 0dB unbalanced at mixer facility socket |
|
|
Auxiliary audio input |
Single 0dB unbalanced - routed to each output zone using front panel selector switches |
||
|
Audio outputs |
4 zones @ 0dB unbalanced. Optional balanced output available |
8 zones @ 0dB unbalanced. Optional balanced output available |
|
|
Output zone selection |
4 groups of up to 4 selected zones per group, and "All zones" |
8 groups of up to 8 selected zones per group, and "All zones" |
|
|
Output priority |
One priority access to each zone: One common non-priority (Auxiliary) signal to each zone |
||
|
Control outputs |
DC current sink from each accessed output zone |
||
|
General |
|||
|
Adjustments |
Internal Treble, bass, master levels, priority selection for the input section. Priority signal & Auxiliary signal sensitivity for each output zone |
Priority signal & Auxiliary signal sensitivity for each output zone |
|
|
User controls |
8 input gain controls; 4 (or 8) Auxiliary signal selector switches; power on-off |
8 Auxiliary signal selector switches; power on-off |
|
|
Alarm outputs |
AC and DC supply failure - individual changeover contacts |
||
|
Power requirements |
230V AC 50-60Hz or 24V DC with automatic changeover |
||
|
Other features |
Removable control knobs; Power switch isolates both AC and DC; Silent switch-on; 3U rack mounting by optional extra BRK-30 kit |
Power switch isolates both AC and DC; Silent switch-on; 3U rack mounting by optional extra BRK - 30 kit |
|
|
