MACRO input modules |
|

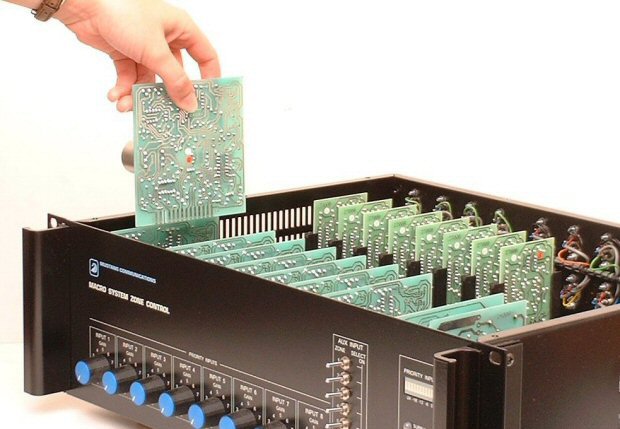

Each MACRO mixer-amplifier or zone control will require a selection of input modules which simply plug into the host circuitry to enable microphones and music equipment and other devices to be perfectly matched to the amplifier. Certain modules also offer a range of on-board configuration settings |
|
MICROPHONE & LINE INPUT MODULES
| Brief specifications and features | ||||||||
|
|
M240 |
M260 |
M280 |
L240 |
L270 |
L300 |
L330 |
L340 |
|
Microphone/line |
Microphone |
Line |
||||||
|
Sensitivity |
100uV - 100mV |
50mV-100V |
50-775mV |
|||||
|
Input impedance (ohms) |
200 |
600ohms - 10k - 100k |
nom 47k |
|||||
|
Input configuration |
transformer balanced |
unbalanced |
||||||
|
Priority only or Priority/passive |
PP |
PO |
PO |
PP |
PO |
PO |
PP |
PP |
|
Chimes & CDM sink |
|
Y |
|
|
Y |
|
|
Y |
|
Phantom supply |
Y |
Y |
Y |
|
|
|
|
|
|
Audio operated priority (VOX) |
|
|
Y |
|
|
Y |
|
|
|
Priority current sink |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
|
Bass-cut facility |
Y |
Y |
Y |
Y |
Y |
Y |
|
|
PRIORITY TONE GENERATOR MODULES
| Brief specifications and features | ||||
|
|
T260 |
T270 |
T300 |
T320 |
|
Function |
Repeat single gongs |
Dee-dah alarm, whoop, warble, time pips, dashes, continuous tone |
telephone warble |
3-chime sequence |
|
Adjustments and selections |
Tone frequency, timer duration |
Tone frequency, timer duration, character rate |
Tone frequency |
Tone frequency, timer duration, |
|
Momentary or timed |
M/T |
M/T |
M |
M/T |
|
Trigger store (memory) |
Y |
Y |
- |
Y |
|
Priority sink |
Y |
Y |
Y |
Y |
NON-PRIORITY INPUT MODULES
| Brief specifications and features | ||
|
|
E260 |
|
|
Function |
Magnetic phono cartridge |
Ceramic phono cartridge |
|
Sensitivity |
5mV @ 50k ohms |
80mV - 1V @ 1M ohms |
|
Equalisation |
RIAA |
Flat |
|
