VA units form a versatile range of high efficiency, robust 200 Watt amplifiers and mixers. They can be configured as powerblocks from which large co-ordinated paging, music and entertainment systems can be assembled. Of particular interest will be the V.8M and V.2808 which feature individual treble and bass equalisation for each input. These amplifiers are versatile and comprehensively specified to ensure complete integration with other Mustang equipment ranges, such as zone controls, volume controls, and slave amplifiers.

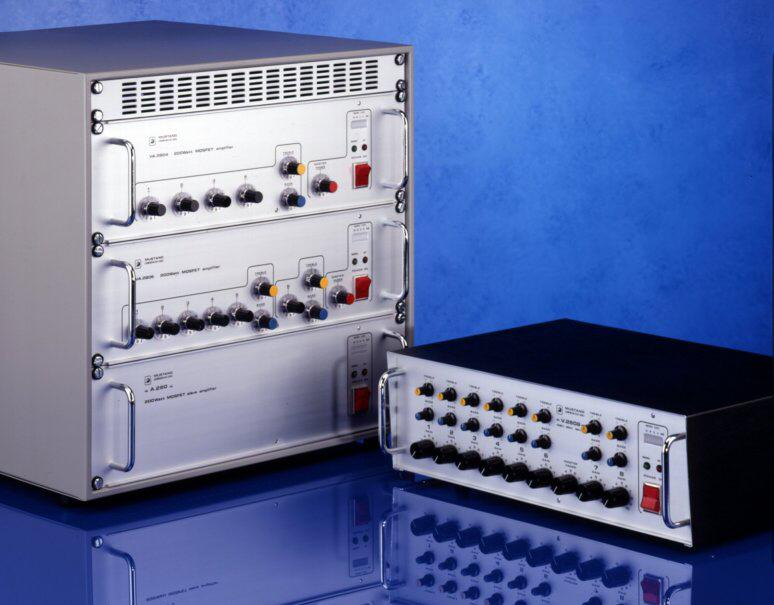

Click for a larger picture

Construction features aspects which ensure long term reliability and ease of maintenance. Each model is available for 3U rack mounting or with free-standing case. Download a full datasheet in PDF

Brief specifications and features
	V.8M	VA.2804	VA.2806	V.2808	A.280
Output power	-	200 Watts
Output matching	0dB output only	Low impedance, and centre-tapped 100V line floating
Input Module capacity	8	4	6	8	-
Input performance	Determined by the input module facilities. See module data				0dB unbalanced input.
Treble & Bass groups	8	1	2	8	-
Other features	Priority control of inputs 1; 0dB access points pre-and post-master gain control; 24V DC auxiliary output; priority controlled current sink; 230V AC supply input; robust locking DIN input connectors; output bargraph; status LED's				230V AC supply; robust locking DIN inputs.
Factory options	Auto level control; spindle locks; XLR input connectors				1:1 transformer balanced floating input
	Please discuss your individual option requirements with the factory
