INPUT
MODULES |
|

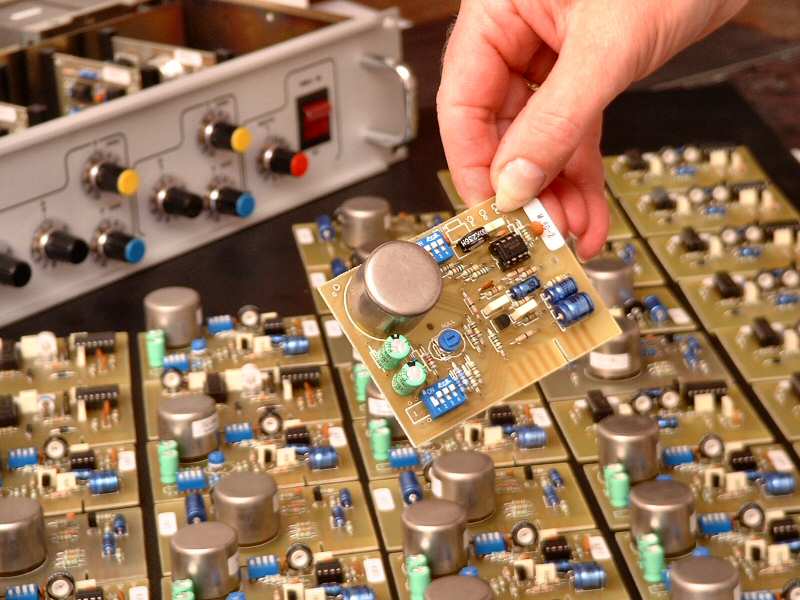

Mustang amplifiers in the MMA, GA, and VA ranges require the incorporation of purpose designed modules to provide the necessary pre-amplification and equalisation for incoming signals. The range also includes tone generators and tuner modules. |
| Brief specifications and features | |
|
M.6 |
Microphone 30 - 200 ohms, transformer balanced for general purpose applications. +15V phantom supply |
|
QM.6 |
Microphone 30 -200 ohm transformer balanced. Ding-dang-dong chimes for paging microphones. +15V phantom supply |
|
M.60 |
Universal microphone - line input. 125uV - 2.6V transformer balanced, with +15V phantom supply. Fully configurable |
|
M.60/TB |
Universal microphone - line input, as above , with additional internal treble and bass individual adjustments |
|
G.4 |
Phono input. Ceramic and magnetic. RIAA equalised |
|
T.5 |
Line input, unbalanced general purpuse unbalanced for tape, tuner, CD, Aux, etc. Adjustable. |
|
L.5 |
Line input, transformer balanced, floating 0dB and 100V line for interconnection of equipment. |
|
L.50 |
Universal line input, transformer balanced, floating. 75mV - 100V. Fully adjustable. For interconnection of equipment |
|
TG.2 |
Tone generator: 1kHz time pip sequence - momentary trigger and single cycle. 1kHz continous tone - momentary trigger |
|
TG.3 |
Tone generator: Repeating gongs for alert warning. Momentary triggering and single cycle. Adjustable timer |
|
TG.4 |
Tone generator: Dee-Dah alternating sequence, and fast warble alert/incident warning. Momentary triggering |
|
XAM.2 |
AM tuner: Single station fixed frequency - customer specifies in the range 600kHz-1.5MHz; AGC |
| VFM.3 | FM tuner: Tunable on installation, in the range 88-108MHz. AFC, AGC, squelch. For use only with GTMA series units only |
|
VFM.4 |
FM tuner: Single station. Tunable on installation, in the range 88-108MHz. AFC, AGC, squelch. For use with all except GTMA series amplifiers |
|
