The comprehensive MMA range is suitable for cost-effective incorporation into a variety of small scale priority paging and music systems in factories, schools, and hotels, etc. Various output powers combined with a flexible input module system, and complete integration with other mustang product ranges ensures complete compliance with the user operating requirements. Download a full datasheet in PDF

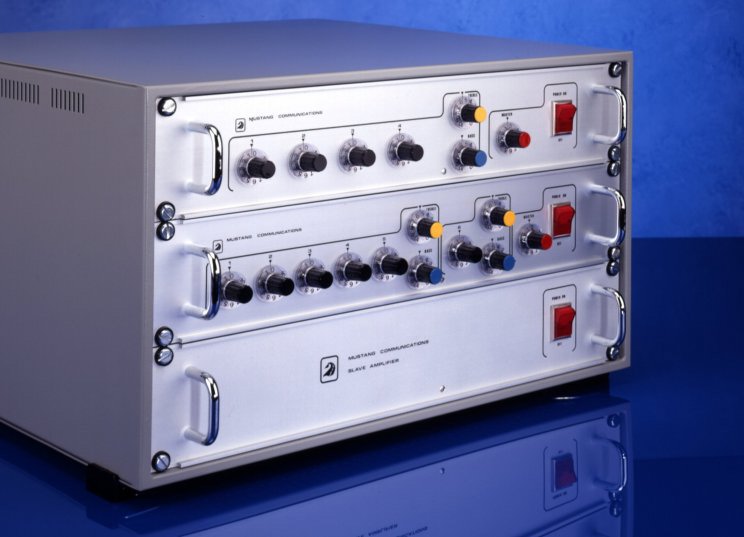

Click for a larger picture

The construction of the MMA range is extremely robust, with due consideration for ease of maintenance. Units can be specified either for 2U rack mounting or for free-standing use, and various optional features are offered.

	MM.4	MM.6	MMA.704	MMA.706	MMA.1404	MMA.1406	A.70	A.140
Format	Mixer only		Integrated mixer amplifier				Slave amplifier
Output power	-	-	50Watts		100Watts		50Watts	100Watts
Outputs	0dB		4-8-16 ohms; & 100V balanced floating with centre-tap
Module capacity	4	6	4	6	4	6	None
Input performance	Determined by the input module facilities - see module data						0dB unbalanced line input
Treble & Bass groups	1	2	1	2	1	2	-
Other features	Priority control of input No.1; 0dB access points pre- and post-master gain control; 24V DC auxiliary output; priority controlled current sink; full protection; 230V AC supply input; robust locking DIN input connectors.						230V AC supply; robust locking DIN inputs
Factory options	Auto-level control; XLR input connectors; spindle locks; 0dB line transformer in/out						XLR input connectors; 0dB balanced floating line transformer input
	Please discuss your individual option requirements with the factory
