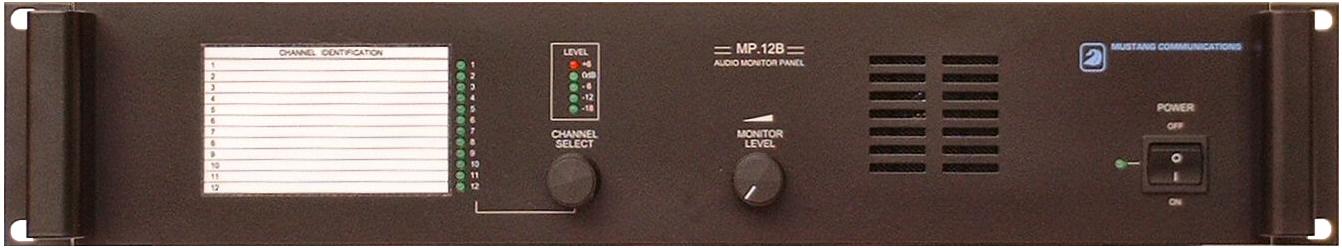

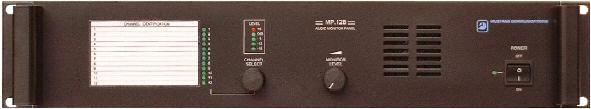

Recently introduced, this unit is designed to provide both operators and maintenance staff with a reasonable guide as to the quality and level of signal levels at critical points within a system cubicle. Twelve dual-sensitivity inputs cover levels between 0dB line and 100V line though the audio circuitry can perform adequately down to 100mV therefore even covering domestic signal sources such as CD players, tuners, etc. A spacious legend card and LED highlight, conveniently identifies the selection. By incorporating precision balanced inputs and two stages of transient protection, we have created a monitor which will be equally suited to evaluating long loudspeaker lines on extensive sites, and to pre-selecting a track on a CD.
Download a full specification datasheet in PDF

Click for a large picture
