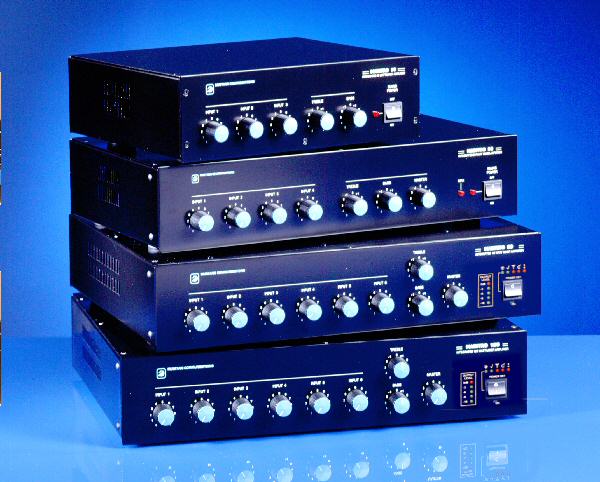

MAESTRO range amplifiers |
|
The Maestro range of amplifiers has been designed for small scale, cost sensitive installations where the sophistication and adaptability of other Mustang products is not warranted.
Download
a full datasheet in PDF
|
 Click for large picture |
| Brief specifications and features | ||||
|
|

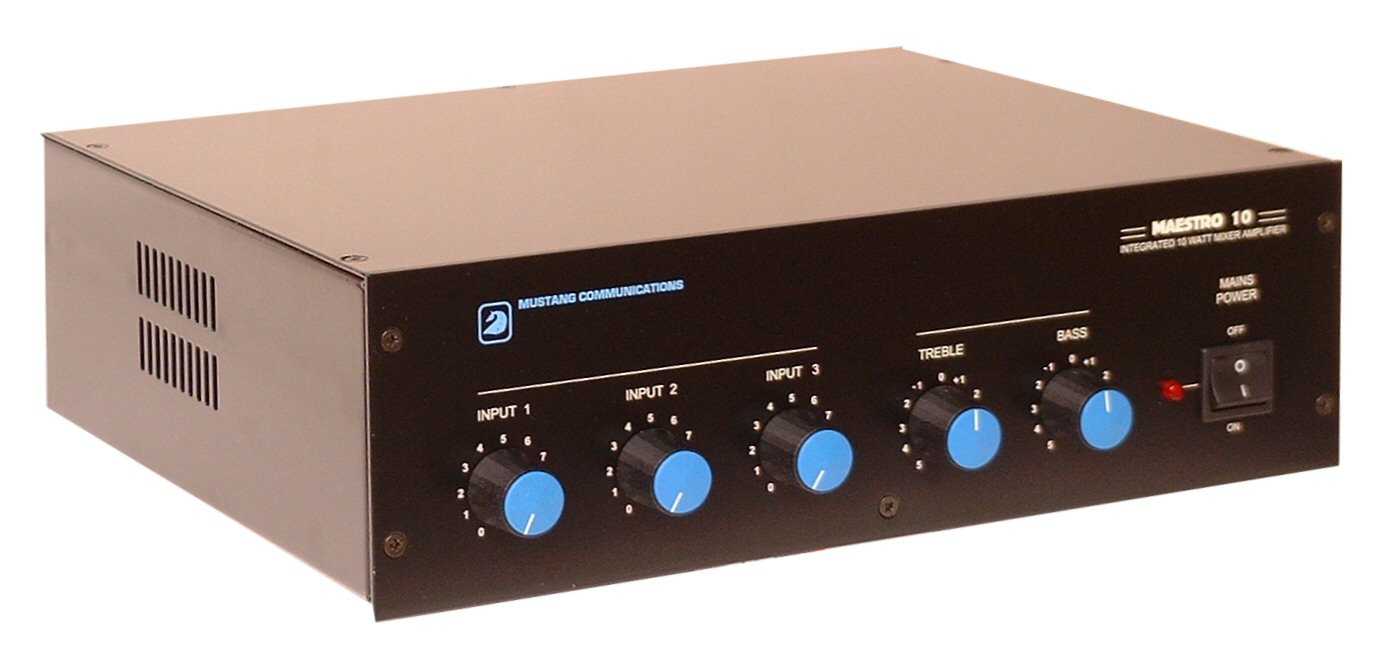

MAESTRO 10 |

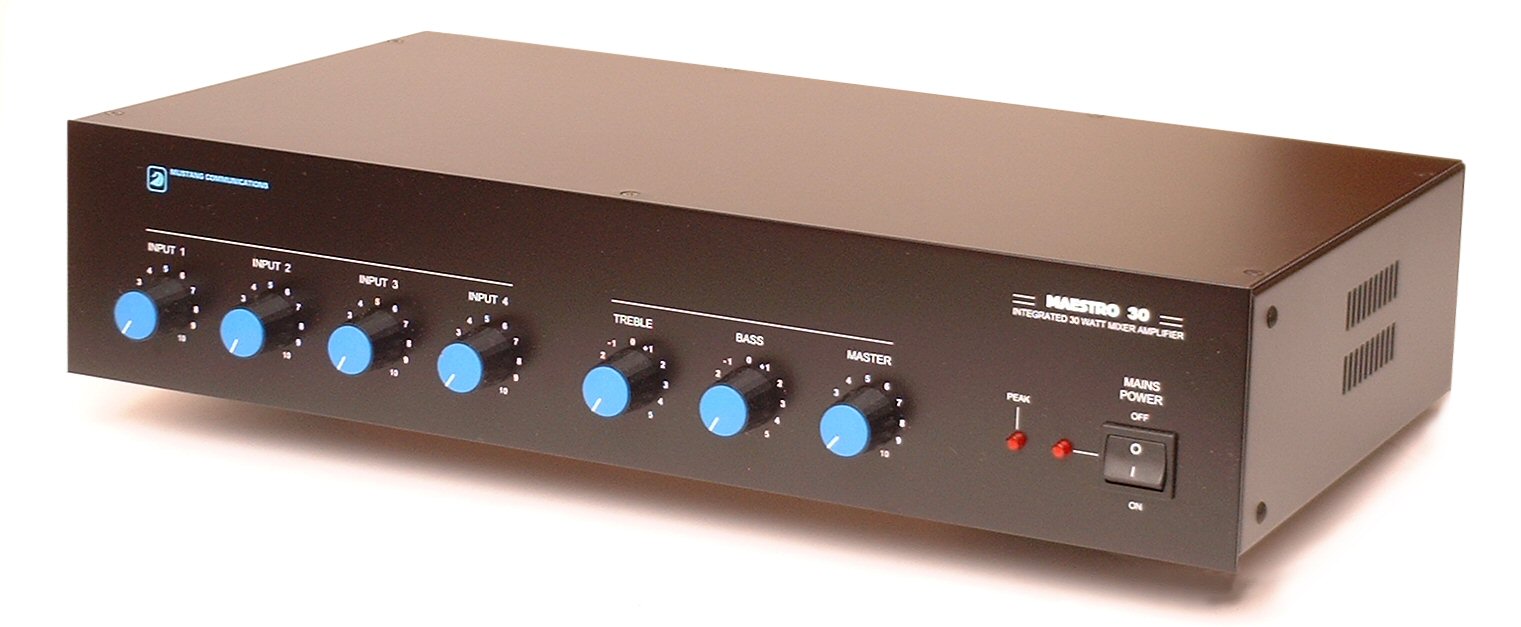

MAESTRO 30 |
MAESTRO 60 |

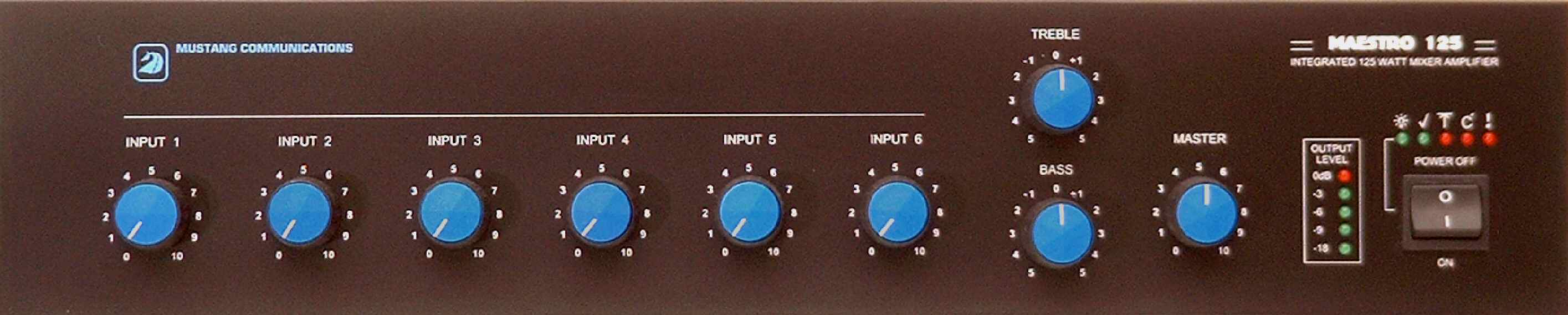

MAESTRO 125 |
|
|
||||
|
Output Power |
10Watts RMS continuous into 4 ohms, 70V and 100V |
30 Watts RMS continuous into 4 ohms, 50V, 70V, and 100V |
60 Watts RMS continuous into 4 ohms, 20V, 50V, 70V, and 100V |
125 Watts RMS continuous into 4 ohms, 20V, 50V, 70V, and 100V |
|
Input facilities |
3 inputs - 1 balanced microphone with priority 1 universal bal. mic/bal.line 1 unbalanced line |
4 inputs- 1 balanced microphone with priority 2 universal bal. mic/bal.line 1 unbalanced line |
6 inputs- 2 balanced microphones with priority 3 universal bal. mic/bal.line 1 unbalanced line/phono
|
|
|
Tape record /playback |
No |
Yes |
||
|
Phantom microphone facilities |
No |
Inputs 1 - 2 - 3: |
Inputs 1 -2 - 3 - 4 - 5 |
|
|
Signal priorities (optional) |
Input 1 |
Input 1 & 2 |
||
|
Rack mountable? |
No |
Yes - order optional rack mount kit. Part No. BRK-20. Occupies 2U |
||
|
Auxiliary 24VDC output |
No |
Yes |
||
|
Priority current sink |
No |
Yes - inputs 1 & 2 |
||
|
Supply voltage |
220/240V AC 50-60Hz |
|||
|
Other features |
Microphone bass cut. Removable controls.
|
Microphone bass cut. Removable controls. Output indicator. |
Pre-announcement chimes on inputs 1 & 2. Silent switch-on Removable controls LED status display Output bargraph |
|
|
|
|
|

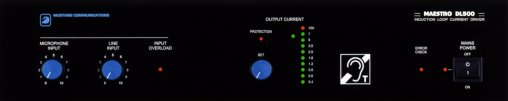

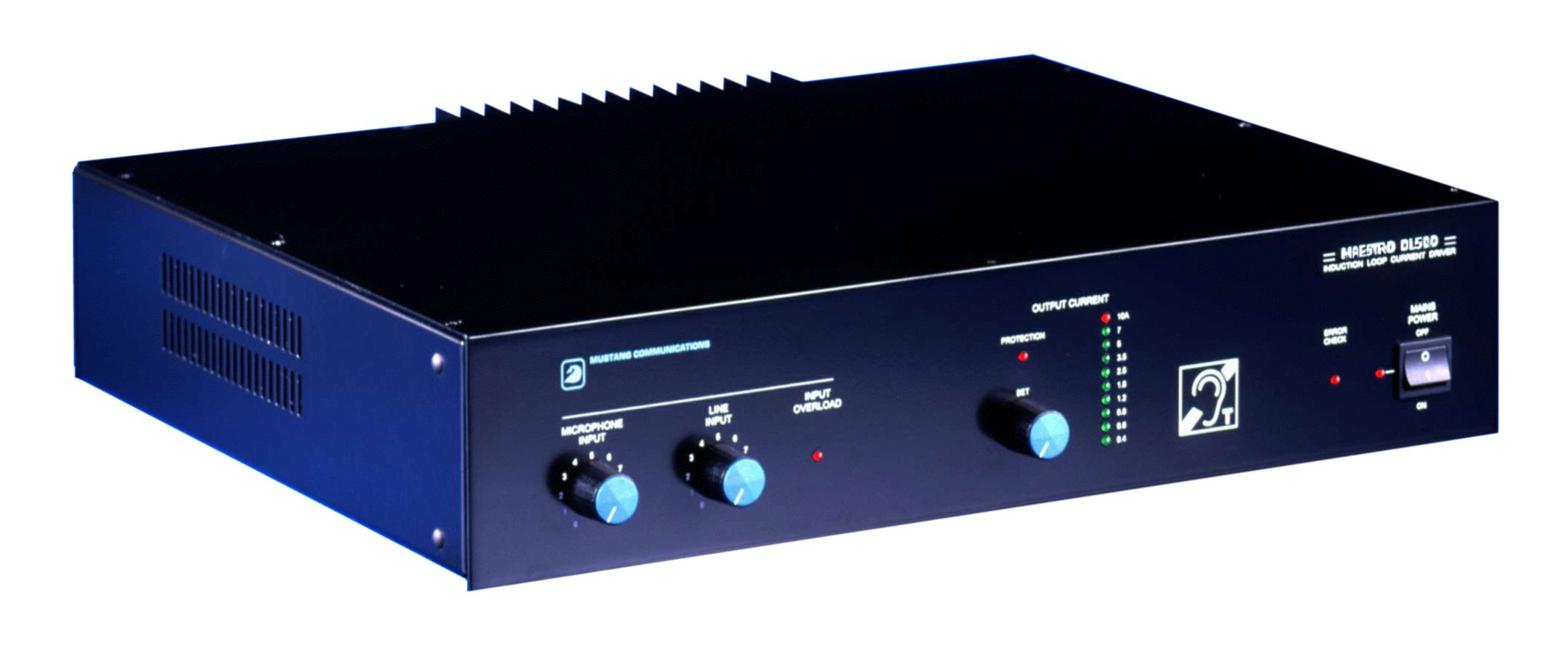

The use of the DL500 loop driver with a simple loop radiator will enable those with a hearing impairment and hearing-aid to enjoy any programme material which can be collected by a standard microphone. Alternatively it can be interconnected very simply to a Public Address system to extend reception to the hearing impaired. These techniques can also be used to provide entertainment to industrial operatives wearing special ear-defender receiver headsets. The DL.500 is a comprehensively specified unit designed to power inductive loops up to 500 sq.M, to the requirements of BS.6083/7594. Its simplicity of installation is matched only by its simplicity of operation, and once installed and set-up can be left to operate without further adjustment. It can be inter-connected to Maestro 30-60-125 amplifiers by using our optional cable - Part No. CC.1, to provide continuity of tape recording and playback facilities. |
|
Brief specifications and features |
|
| SPECIFICATIONS | |
|
Mode |
Dedicated constant current drive amplification |
|
Loop current output |
Up to 10 Amps peak, adjuatable by front control |
|
Loop capacity |
Typically 500 sq.Metres (to BS6083) |
|
Loop monitor output |
Direct monitoring of loop by 6.35mm stereo headphone socket |
|
Microphone input |
200uV balanced. Bass cut. 12V+ Phantom supply. XLR. |
|
Line input |
Nominally 50mV - 775mV balanced and unbalanced |
|
Loudspeaker level input |
Nominally 5V - 100V balanced & unbalanced |
|
Maestro amplifier input |
Dedicated interface port |
|
Slave connection |
Input/output for interconnection of up to ten units |
|
Pre-amplifier compression |
30dB @ 1kHz |
|
Tape/ record/playback |
Fully configurable for stand-alone or linking with Maestro amplifiers |
|
Supply voltage |
220/240V AC 50-60Hz |
|

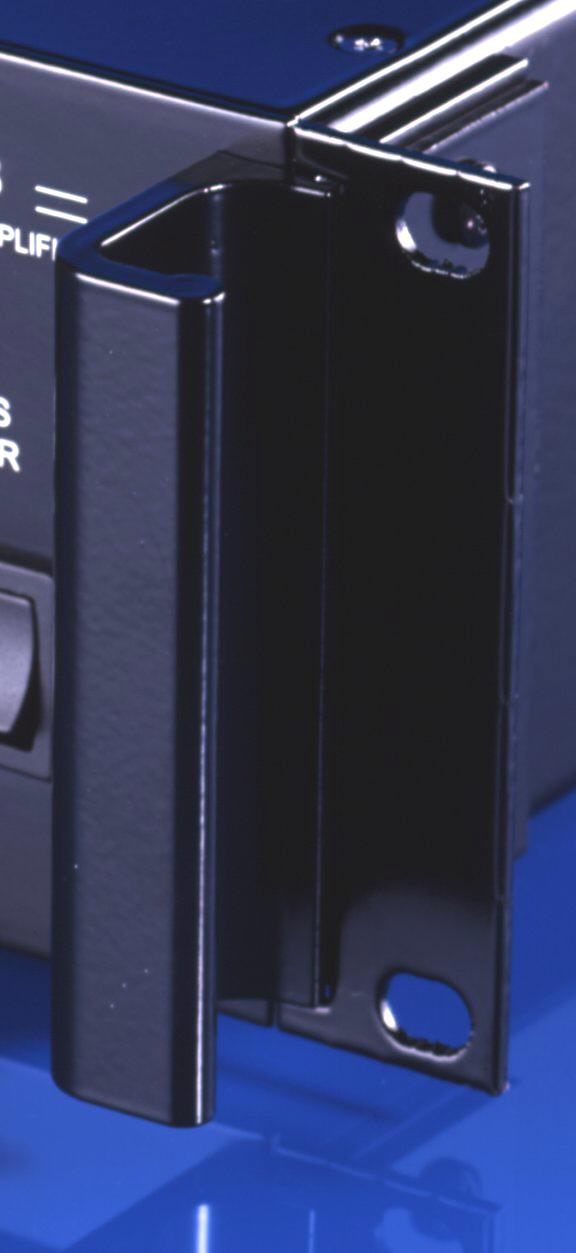

BRK-20 Rack mounting kit for Maestro amplifiers Maestro 125 , Maestro 60, Maestro 30 and DL.500 units can be rack mounted into standard 19" cubicles by using the BRK-20 optional rack mount kit. All the rear connection cables will then be neatly concealed, whilst the front panels will form a matching suite. Specially designed pull-handles are included to simplify the insertion and withdrawal. A full range of 19"cubicles, 19" cases, chassis runners, panels, and other related hardware are illustrated on a separate page. |
|
