DM
range desk paging microphones
|
|
To complement out multi-zone control systems, we offer three standard desk microphones. Each is fully compatible with our amplifier priority circuitry techniques. |
|
| Brief specifications and features - | |||
|
|
DM/1 |
DM/5 |
DM/10 |
|
Microphone |
Dynamic capsule. 150Hz - 15kHz response with cardioid pick-up pattern and swan neck. Low microphony. -60dB sensitivity (rel 1V/Pa) |
||
|
Controls |
PTT (press-to-talk) button |
PTT (press-to-talk) button, individual zone selector key, and All zone key |
|
|
Base size - mm |
118 x 160 x 60 |
155 x 160 x 60 |
|
|
Finish & construction |
Two-part metal base, two tone textured and semi-gloss grey paint finish. Matt black microphone head. |
||
|
Other features |
"System Busy" LED; optional LPA line sending amplifier - phantom or cable powered; 1.8Metre cable tail; legend strip for user idents |
||
|

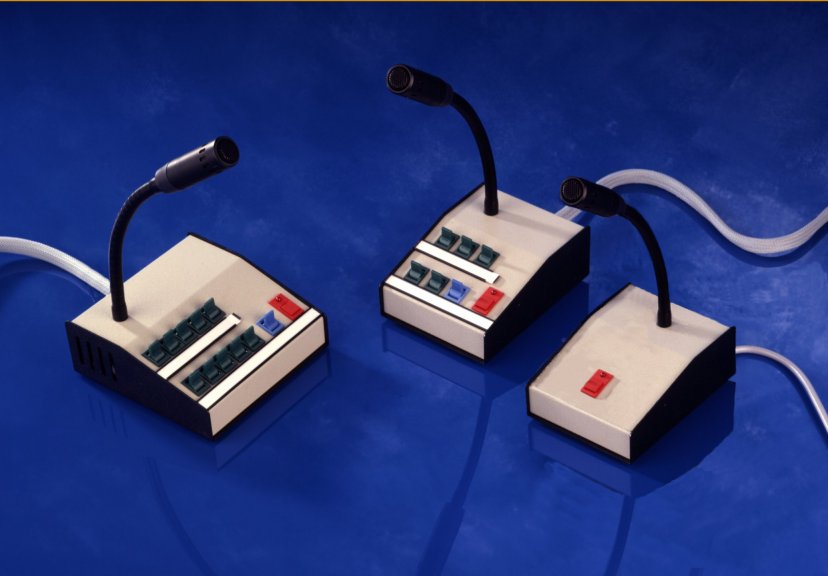

Please
note that the colours of the switches may vary from those illustrated,
due to component availability
|
|
