MACRO
SL/10 Surveillance system
|
|
A comprehensively specified monitoring unit for continuous verification of 100V loudspeaker loads and associated amplifier signals, for use in AC or AC/DC powered high reliability applications in BS.5839 and BS.7443 systems |
| Brief specifications and features | |
|
|
SL/10 |
|
Circuit capacity |
10 independently monitored circuits @ 100V line |
|
Adjustment range |
30 Watts to 400Watts load per circuit |
|
Recommended resolution |
Adjustable for triggering of a 10% to 30% deviation from the expected load |
|
Operating frequency |
20kHz +/- 100Hz |
|
Indication |
Front LED display shows OVERLOAD, UNDERLOAD, and Amplifier Failure |
|
Alarm outputs |
One set of Isolated changeover relay contacts for load or signal failure, individual contact sets for AC or DC supply fail, current sinks for individual amplifer failure |
|
Power requirements |
230V AC 50-60Hz or 24V DC with automatic changeover |
|
Other features |

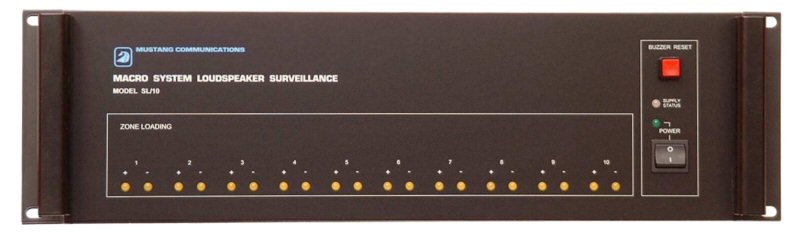

Power switch isolates both AC and DC; 3U rack mounting using optional extra BRK-30 kit (shown). |
|
