A400 power amplifier

The A400 has been developed as a powerful building block for high performance systems operating to BS5839 or BS7443. Even after ten years, the A400 is not a standard catalogued product, as such, as we manufacture it in a wide variety of permutations in order to meet individual requirements. However, we hold stocks of sub-assemblies, PCBs, and critical chassis components to enable us to keep the lead time down to a minimum.

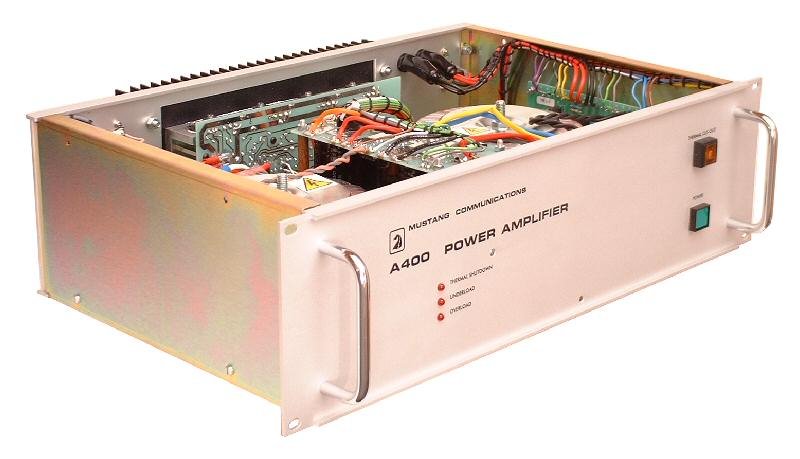

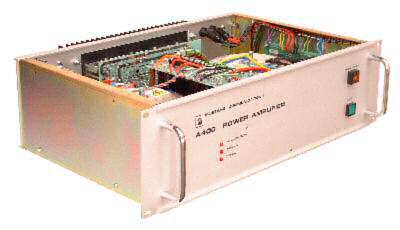

Please contact our sales office to discuss your specific requirements	A typical A400 - click for larger picture
Download a full datasheet in PDF

Brief specifications and features
	TYPICAL A400 BASE SPECIFICATION	OPTIONS & VARIATIONS
Output power	400W RMS continuous, 100V line floating	50V
Output connector	Binding posts	XLR, spring terminals, barrier terminals
Input signal	0dB unbalanced	Electronic balanced, front gain control, concealed control, two signal input with priority, etc
Input connector	Locking DIN	XLR
Output surveillance	Not fitted	Fitted
Supply input	230V AC 50-60Hz, low inrush	230VAC and 48-0-48V DC
Auxiliary outputs	AC supply fail contacts	AC (and DC) supply fail contacts, line fault contacts (via surveillance)
Presentation	Silver anodised fascia, black legends	Black/silver fascia, custom printed with customer logo and legends, special paint finish, etc
Dimensions	3U 19" rack mount x 328mm deep	-
